Chlorine compressor

Performance characteristics of Chlorine gas compressor

1.Customize and design and manufacture the product according to the actual needs of customers；There is a wide range of fow adaptation.

2.Customize and design and manufacture the product according to the actual needs of customers; There is a wide range of inlet and outet pressure.

3.Customize and design and manufacture the product according to the actual needs of customers; There is a wide range of inlet temperature:

4.The system control is safe, stable and reliable: PLC or on-site operation box can be installed or centralized operation and control by the user's DCS system can be put in place in order to serve functions such as display monitoring, alarm. interlocking and adjustment control. Through on-site manual operation and/or centralized semi-automatic operation in the central control room, we can start and stop the equipment and realize load lifting and lowering, on-site operator on duty is no longer necessary; automatic control of system pressure adjustment is realized.

5.Integrated skid-mounted assembly, compact structure, small footprint,saving space in he workshop, easy installation and maintenance.

6. The speed increasing box of the unit adopts a first level speed increase, and together with the comb sealing device, it adopts a horizontal sectional design for easy maintenance; Friction free three chamber labyrinth gas shaft end seal, zero leakage.

7. Three element flow surface line design, special surface treatment, high efficiency, long service life.

8. Simple and compact structure, high efficiency, extremely low maintenance costs in the later stage, and high cost-effectiveness; The sealing system adopts a comb tooth labyrinth sealing structure with four chambers, using dry nitrogen gas as the sealing gas to achieve automatic adjustment of sealing pressure; It can prevent chlorine gas leakage and pollution, prevent sealing gas from mixing with chlorine gas to reduce its purity, and prevent chlorine gas from entering the gearbox and causing lubricating oil deterioration; Due to its non-contact sealing, the mechanical loss is small.

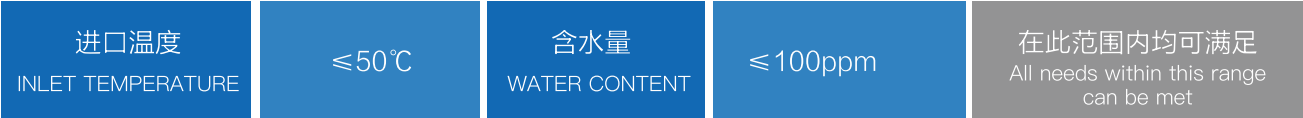

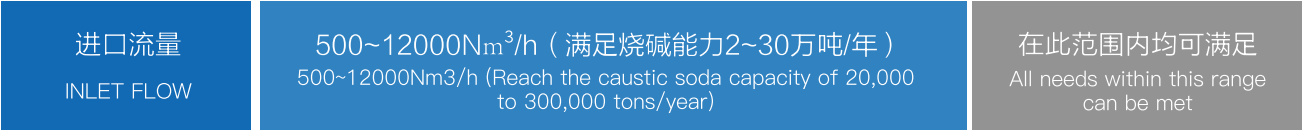

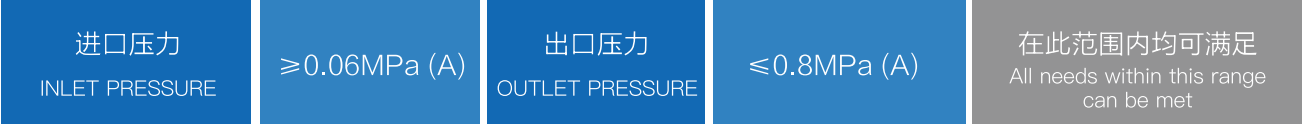

Performance parameters of chlorine gas compressor
